<b style="padding:0px;margin:0px;"><b>SPECIFICATION</b><b>：</b><b></b> </b>
</p>
<p class="MsoNormal" style="text-indent:21pt;">

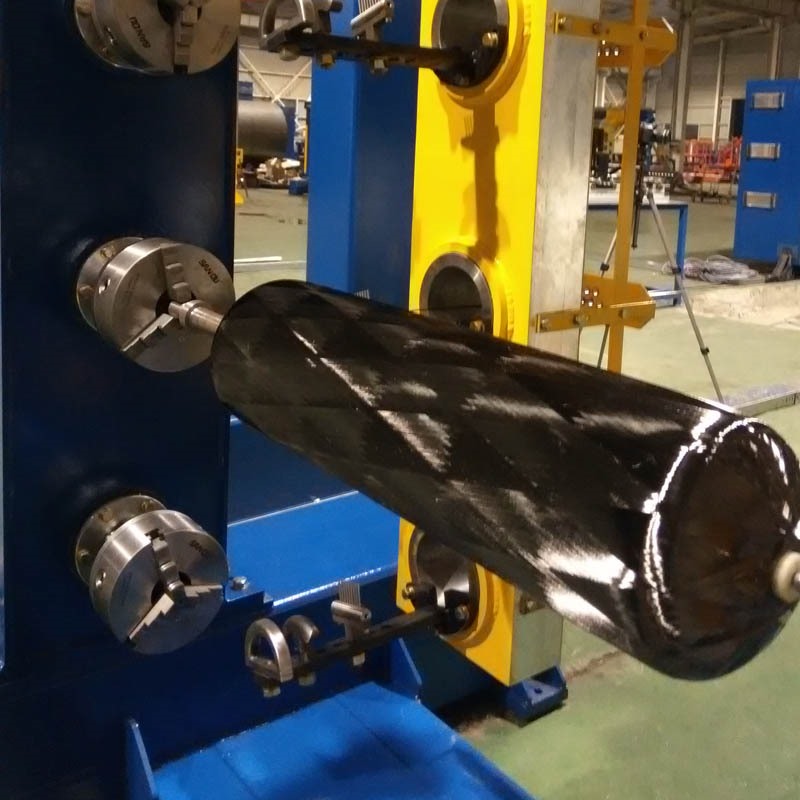

<b style="padding:0px;margin:0px;">ФD1-ФD2*L FOUR AXES X SPINDLE GANTRY TYPE HIGH PRECISION WINDING MACHINE</b>
</p>
<p class="MsoNormal">
<b style="padding:0px;margin:0px;">REMARKS: Range of D1(min. DN) and D2(max. DN) should be specified when place the order.“X” can be set according to product max diameter and length.(L≤6000mm)</b>
</p>
<p class="MsoNormal" style="text-indent:21pt;">
<b style="padding:0px;margin:0px;"><b>COMPOSITION:&nbsp;</b>GANTRY TYPE TRACK, DRIVING HEADSTOCK, TAILRACK, WINDING TROLLEY, RESIN BATH, ROTARY ROVING GUIDER, CROSEE-FEED ARM AND FIBER ROVING CREEL</b>
</p>
<p class="MsoNormal" style="text-indent:21pt;">
<b style="padding:0px;margin:0px;"><b>SCOPE OF APPLICATION</b><b>：</b><b></b> </b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">1.FRP pipe of DN10-1000mm, L≤6000mm</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">2.FRP pipe of polyester and epoxy resin</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">3.Pipe of various fibers: fiberglass, carbon fiber, aramid fiber and basalt fiber</b>
</p>
<p class="MsoNormal" style="text-indent:21pt;">
<b style="padding:0px;margin:0px;"><b>PARAMETERS</b><b>：</b><b></b> </b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">4.Product DN： Ф10mm-Ф1000mm</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">5.Product Length:≤6000mm</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">6.Winding Angle：≥0° ≤89°</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">7.Fiber-drawing Speed：≤100m/min</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">8.Mandrel Speed: ≤75 rpm/min</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">9.Trolley Speed: 60m/min</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">10.Control Mode: Four axes linkage servo control +Yanhua industrial control (Taiwan product)+ PMAC2 LITE PCI (American control panel)</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">11.Winding software: arbitrary combination of sphere/semi-sphere, cone, cylinder and ellipsoid/semi-ellipsoid</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">12.Resin Bath: with function of heating which meets the requirement of epoxy products winding</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">13.Roving Creel: Three types for choice</b>
</p>
<p class="MsoNormal" style="margin-left:21pt;text-indent:0cm;">
<b style="padding:0px;margin:0px;">14.Simplified Tension Creel</b>
</p>
<p class="MsoNormal" style="margin-left:21pt;text-indent:0cm;">
<b style="padding:0px;margin:0px;">15.Mechanical Tension Creel</b>
</p>
<p class="MsoNormal" style="margin-left:21pt;text-indent:0cm;">
<b style="padding:0px;margin:0px;">16.Electronic Tension Creel</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">17.Equipment Total Power: 22±5KW</b>
</p>
<p class="MsoNormal" style="margin-left:0cm;text-indent:21pt;">
<b style="padding:0px;margin:0px;">18.Requirement of installation space：W=10000mm，L=8600mm ( product length within 6000mm)</b>
